Huawei基于双机热备主备模式的IPsec

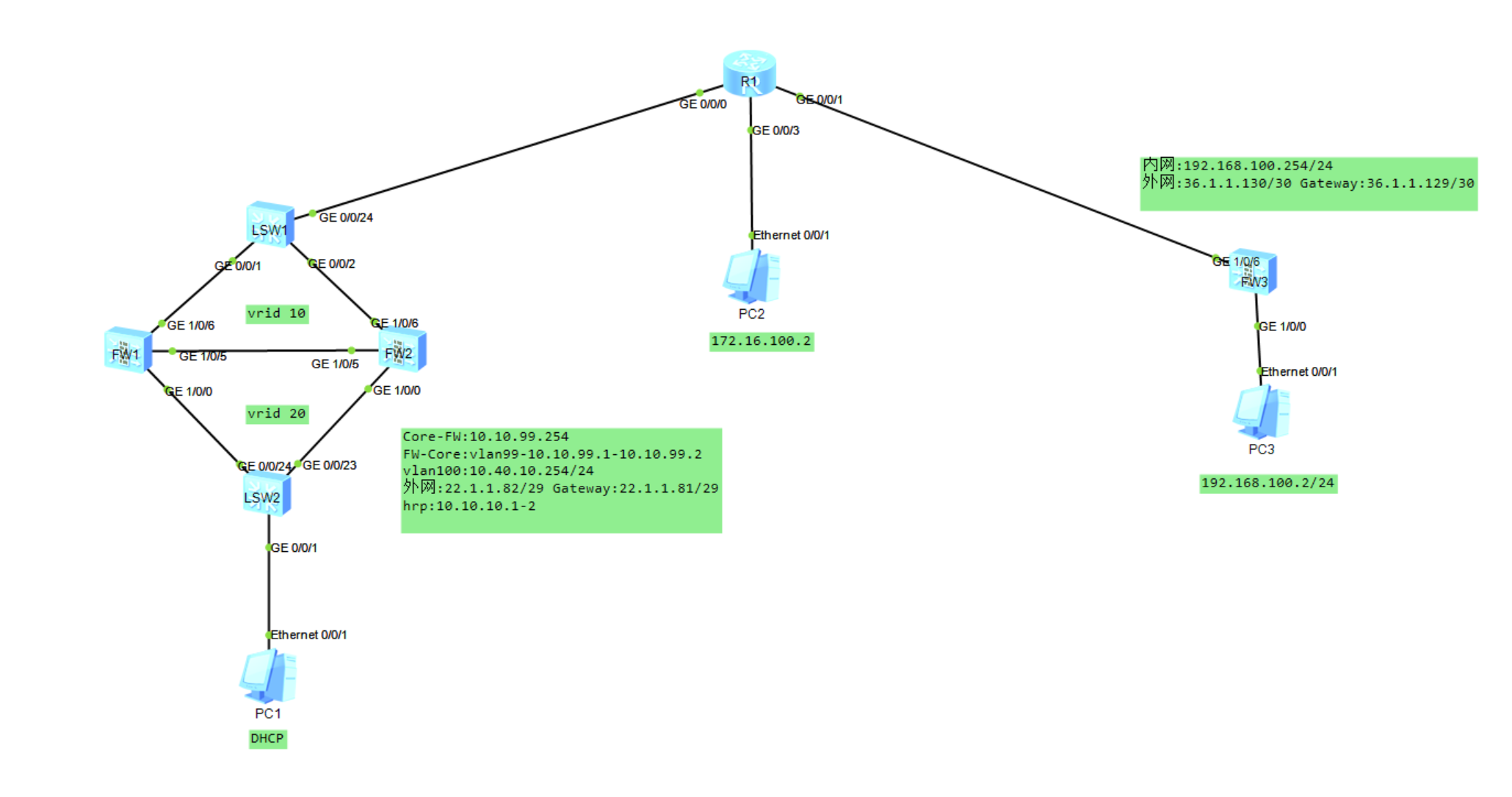

拓扑

规划

总部

Core-FW:10.10.99.254

FW-Core:vlan99-10.10.99.1-10.10.99.2

vlan100:10.40.10.254/24

外网:22.1.1.82/29 Gateway:22.1.1.81/29

hrp:10.10.10.1-2

分部

内网:192.168.100.254/24

外网:36.1.1.130/30 Gateway:36.1.1.129/30

FW1配置

!Software Version V500R005C10SPC300
!Last configuration was saved at 2025-06-19 02:58:23 UTC
#
sysname USG6000V1
#
 l2tp domain suffix-separator @
#
 ipsec sha2 compatible enable
#
undo telnet server enable
undo telnet ipv6 server enable
#
 hrp enable
 hrp interface GigabitEthernet1/0/5 remote 10.10.10.2
 hrp track interface GigabitEthernet1/0/0
 hrp track interface GigabitEthernet1/0/6
#
 update schedule location-sdb weekly Sun 06:45
#
 firewall defend action discard
#
 banner enable
#
 user-manage web-authentication security port 8887
 undo privacy-statement english
 undo privacy-statement chinese
page-setting
 user-manage security version tlsv1.1 tlsv1.2
password-policy
 level high
user-manage single-sign-on ad
user-manage single-sign-on tsm
user-manage single-sign-on radius
user-manage auto-sync online-user
#
 web-manager security version tlsv1.1 tlsv1.2
 web-manager enable
 web-manager security enable
#
firewall dataplane to manageplane application-apperceive default-action drop
#
 undo ips log merge enable
#
 decoding uri-cache disable
#
 update schedule ips-sdb daily 23:51
 update schedule av-sdb daily 23:51
 update schedule sa-sdb daily 23:51
 update schedule cnc daily 23:51
 update schedule file-reputation daily 23:51
#
ip vpn-instance default
 ipv4-family
#
 time-range worktime
  period-range 08:00:00 to 18:00:00 working-day
#
acl number 3000
 rule 5 permit ip source 10.40.0.0 0.0.255.255 destination 192.168.100.0 0.0.0.255
#
ipsec proposal tran1
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
ike proposal default
 encryption-algorithm aes-256 aes-192 aes-128
 dh group14
 authentication-algorithm sha2-512 sha2-384 sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
ike proposal 10
 encryption-algorithm aes-256
 dh group14
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
ike peer b
 pre-shared-key %^%#/.!Q-^ITD'zcqFVSi*nQ~U|<$OCG<T,.%6(~b*rB%^%#
 ike-proposal 10
 dpd type on-demand
 remote-address 36.1.1.130
#
ipsec policy map1 10 isakmp
 security acl 3000
 ike-peer b
 proposal tran1
 tunnel local 22.1.1.82
#
aaa
 authentication-scheme default
 authentication-scheme admin_local
 authentication-scheme admin_radius_local
 authentication-scheme admin_hwtacacs_local
 authentication-scheme admin_ad_local
 authentication-scheme admin_ldap_local
 authentication-scheme admin_radius
 authentication-scheme admin_hwtacacs
 authentication-scheme admin_ad
 authorization-scheme default
 accounting-scheme default
 domain default
  service-type internetaccess ssl-vpn l2tp ike
  internet-access mode password
  reference user current-domain
 manager-user audit-admin
  password cipher @%@%IeaX%RCdu3{*xE,9#xcKfcBLXN\AG{WD!>hdbD@RVK\%cBOf@%@%
  service-type web terminal
  level 15

 manager-user api-admin
  password cipher @%@%;c4;H(10{QLdG0#Ps!4=B#'>hC$=2$*yC8k<z*,rJ%z'#'AB@%@%
  level 15

 manager-user admin
  password cipher @%@%+)s@M&B7S)N]Cx8aI`D<1yC|ED!f3~@(c%'M$A#W4AF+yC"1@%@%
  service-type web terminal
  level 15

 role system-admin
 role device-admin
 role device-admin(monitor)
 role audit-admin
 bind manager-user audit-admin role audit-admin
 bind manager-user admin role system-admin
#
l2tp-group default-lns
#
interface GigabitEthernet0/0/0
 undo shutdown
 ip binding vpn-instance default
 ip address 192.168.0.1 255.255.255.0
 alias GE0/METH
#
interface GigabitEthernet1/0/0
 undo shutdown
 ip address 10.10.99.1 255.255.255.0
 vrrp vrid 20 virtual-ip 10.10.99.253 active
 vrrp virtual-mac enable
 service-manage ping permit
#
interface GigabitEthernet1/0/1
 undo shutdown
#
interface GigabitEthernet1/0/2
 undo shutdown
#
interface GigabitEthernet1/0/3
 undo shutdown
#
interface GigabitEthernet1/0/4
 undo shutdown
#
interface GigabitEthernet1/0/5
 undo shutdown
 ip address 10.10.10.1 255.255.255.0
#
interface GigabitEthernet1/0/6
 undo shutdown
 ip address 10.10.100.1 255.255.255.0
 vrrp vrid 10 virtual-ip 22.1.1.82 255.255.255.248 active
 vrrp virtual-mac enable
 service-manage ping permit
 ipsec policy map1
#
interface Virtual-if0
#
interface NULL0
#
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/0
 add interface GigabitEthernet1/0/5
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/6
#
firewall zone dmz
 set priority 50
#
ip route-static 0.0.0.0 0.0.0.0 22.1.1.81
ip route-static 10.40.0.0 255.255.0.0 10.10.99.254
ip route-static 192.168.100.0 255.255.255.0 22.1.1.81
#
undo ssh server compatible-ssh1x enable
ssh authentication-type default password
ssh server cipher aes256_ctr aes128_ctr
ssh server hmac sha2_256 sha1
ssh client cipher aes256_ctr aes128_ctr
ssh client hmac sha2_256 sha1
#
firewall detect ftp
#
user-interface con 0
 authentication-mode aaa
user-interface vty 0 4
 authentication-mode aaa
 protocol inbound ssh
user-interface vty 16 20
#
pki realm default
#
sa
#
location
#
nat address-group 1 0
 mode pat
 route enable
 section 0 22.1.1.82 22.1.1.86
#
multi-linkif
 mode proportion-of-weight
#
right-manager server-group
#
device-classification
 device-group pc
 device-group mobile-terminal
 device-group undefined-group
#
user-manage server-sync tsm
#
security-policy
 rule name Internet
  source-zone trust
  destination-zone untrust
  action permit
 rule name ipsec1
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  action permit
 rule name ipsec2
  source-zone trust
  source-zone untrust
  destination-zone trust
  destination-zone untrust
  source-address 10.40.0.0 mask 255.255.0.0
  source-address 192.168.100.0 mask 255.255.255.0
  destination-address 10.40.0.0 mask 255.255.0.0
  destination-address 192.168.100.0 mask 255.255.255.0
  action permit
#
auth-policy
#
traffic-policy
#
policy-based-route
#
nat-policy
 rule name ipsec
  source-zone trust
  destination-zone untrust
  source-address 10.40.0.0 mask 255.255.0.0
  destination-address 192.168.100.0 mask 255.255.255.0
  action no-nat
 rule name Internet
  source-zone trust
  destination-zone untrust
  action source-nat address-group 1
#
quota-policy
#
pcp-policy
#
dns-transparent-policy
#
rightm-policy
#
return

FW2配置

!Software Version V500R005C10SPC300
!Last configuration was saved at 2025-06-19 02:58:35 UTC
#
sysname USG6000V1
#
 l2tp domain suffix-separator @
#
 ipsec sha2 compatible enable
#
undo telnet server enable
undo telnet ipv6 server enable
#
 hrp enable
 hrp interface GigabitEthernet1/0/5 remote 10.10.10.1
 hrp track interface GigabitEthernet1/0/0
 hrp track interface GigabitEthernet1/0/6
#
 update schedule location-sdb weekly Sun 00:44
#
 firewall defend action discard
#
 banner enable
#
 user-manage web-authentication security port 8887
 undo privacy-statement english
 undo privacy-statement chinese
page-setting
 user-manage security version tlsv1.1 tlsv1.2
password-policy
 level high
user-manage single-sign-on ad
user-manage single-sign-on tsm
user-manage single-sign-on radius
user-manage auto-sync online-user
#
 web-manager security version tlsv1.1 tlsv1.2
 web-manager enable
 web-manager security enable
#
firewall dataplane to manageplane application-apperceive default-action drop
#
 undo ips log merge enable
#
 decoding uri-cache disable
#
 update schedule ips-sdb daily 02:04
 update schedule av-sdb daily 02:04
 update schedule sa-sdb daily 02:04
 update schedule cnc daily 02:04
 update schedule file-reputation daily 02:04
#
ip vpn-instance default
 ipv4-family
#
 time-range worktime
  period-range 08:00:00 to 18:00:00 working-day
#
acl number 3000
 rule 5 permit ip source 10.40.0.0 0.0.255.255 destination 192.168.100.0 0.0.0.255
#
ipsec proposal tran1
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
ike proposal default
 encryption-algorithm aes-256 aes-192 aes-128
 dh group14
 authentication-algorithm sha2-512 sha2-384 sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
ike proposal 10
 encryption-algorithm aes-256
 dh group14
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
ike peer b
 pre-shared-key %^%#/.!Q-^ITD'zcqFVSi*nQ~U|<$OCG<T,.%6(~b*rB%^%#
 ike-proposal 10
 dpd type on-demand
 remote-address 36.1.1.130
#
ipsec policy map1 10 isakmp
 security acl 3000
 ike-peer b
 proposal tran1
 tunnel local 22.1.1.82
#
aaa
 authentication-scheme default
 authentication-scheme admin_local
 authentication-scheme admin_radius_local
 authentication-scheme admin_hwtacacs_local
 authentication-scheme admin_ad_local
 authentication-scheme admin_ldap_local
 authentication-scheme admin_radius
 authentication-scheme admin_hwtacacs
 authentication-scheme admin_ad
 authorization-scheme default
 accounting-scheme default
 domain default
  service-type internetaccess ssl-vpn l2tp ike
  internet-access mode password
  reference user current-domain
 manager-user audit-admin
  password cipher @%@%0)glT4ecAO,[1=ZJ!_U)397vU~G;Vrbe*R_(IGBk<pm/97y3@%@%
  service-type web terminal
  level 15

 manager-user api-admin
  password cipher @%@%&%ab+f6(k-MQS(>*PBk$GCBIO\xKF_rA#PYO_`AQBVP*CBLG@%@%
  level 15

 manager-user admin
  password cipher @%@%$d687eqp\~$<[uR=d[.7-S`]#,`.8'C^]G<c@u=llWN4S``-@%@%
  service-type web terminal
  level 15

 role system-admin
 role device-admin
 role device-admin(monitor)
 role audit-admin
 bind manager-user audit-admin role audit-admin
 bind manager-user admin role system-admin
#
l2tp-group default-lns
#
interface GigabitEthernet0/0/0
 undo shutdown
 ip binding vpn-instance default
 ip address 192.168.0.1 255.255.255.0
 alias GE0/METH
#
interface GigabitEthernet1/0/0
 undo shutdown
 ip address 10.10.99.2 255.255.255.0
 vrrp vrid 20 virtual-ip 10.10.99.253 standby
 vrrp virtual-mac enable
 service-manage ping permit
#
interface GigabitEthernet1/0/1
 undo shutdown
#
interface GigabitEthernet1/0/2
 undo shutdown
#
interface GigabitEthernet1/0/3
 undo shutdown
#
interface GigabitEthernet1/0/4
 undo shutdown
#
interface GigabitEthernet1/0/5
 undo shutdown
 ip address 10.10.10.2 255.255.255.0
#
interface GigabitEthernet1/0/6
 undo shutdown
 ip address 10.10.100.2 255.255.255.0
 vrrp vrid 10 virtual-ip 22.1.1.82 255.255.255.248 standby
 vrrp virtual-mac enable
 service-manage ping permit
 ipsec policy map1
#
interface Virtual-if0
#
interface NULL0
#
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/0
 add interface GigabitEthernet1/0/5
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/6
#
firewall zone dmz
 set priority 50
#
ip route-static 0.0.0.0 0.0.0.0 22.1.1.81
ip route-static 10.40.0.0 255.255.0.0 10.10.99.254
ip route-static 192.168.100.0 255.255.255.0 22.1.1.81
#
undo ssh server compatible-ssh1x enable
ssh authentication-type default password
ssh server cipher aes256_ctr aes128_ctr
ssh server hmac sha2_256 sha1
ssh client cipher aes256_ctr aes128_ctr
ssh client hmac sha2_256 sha1
#
firewall detect ftp
#
user-interface con 0
 authentication-mode aaa
user-interface vty 0 4
 authentication-mode aaa
 protocol inbound ssh
user-interface vty 16 20
#
pki realm default
#
sa
#
location
#
nat address-group 1 0
 mode pat
 route enable
 section 0 22.1.1.82 22.1.1.86
#
multi-linkif
 mode proportion-of-weight
#
right-manager server-group
#
device-classification
 device-group pc
 device-group mobile-terminal
 device-group undefined-group
#
user-manage server-sync tsm
#
security-policy
 rule name Internet
  source-zone trust
  destination-zone untrust
  action permit
 rule name ipsec1
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  action permit
 rule name ipsec2
  source-zone trust
  source-zone untrust
  destination-zone trust
  destination-zone untrust
  source-address 10.40.0.0 mask 255.255.0.0
  source-address 192.168.100.0 mask 255.255.255.0
  destination-address 10.40.0.0 mask 255.255.0.0
  destination-address 192.168.100.0 mask 255.255.255.0
  action permit
#
auth-policy
#
traffic-policy
#
policy-based-route
#
nat-policy
 rule name ipsec
  source-zone trust
  destination-zone untrust
  source-address 10.40.0.0 mask 255.255.0.0
  destination-address 192.168.100.0 mask 255.255.255.0
  action no-nat
 rule name Internet
  source-zone trust
  destination-zone untrust
  action source-nat address-group 1
#
quota-policy
#
pcp-policy
#
dns-transparent-policy
#
rightm-policy
#
return

Core配置

#
sysname Core
#
vlan batch 99 to 100
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
dhcp enable
#
diffserv domain default
#
drop-profile default
#
ip pool vlan100
 gateway-list 10.40.10.254
 network 10.40.10.0 mask 255.255.255.0
 dns-list 223.5.5.5
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif99
 ip address 10.10.99.254 255.255.255.0
#
interface Vlanif100
 ip address 10.40.10.254 255.255.255.0
 dhcp select global
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 100
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
 port link-type access
 port default vlan 99
#
interface GigabitEthernet0/0/24
 port link-type access
 port default vlan 99
#
interface NULL0
#
ip route-static 0.0.0.0 0.0.0.0 10.10.99.253
#
user-interface con 0
user-interface vty 0 4
#
return

FW3配置

!Software Version V500R005C10SPC300
!Last configuration was saved at 2025-06-19 03:09:41 UTC
#
sysname FW-CZ
#
 l2tp domain suffix-separator @
#
 ipsec sha2 compatible enable
#
undo telnet server enable
undo telnet ipv6 server enable
#
 update schedule location-sdb weekly Sun 06:49
#
 firewall defend action discard
#
 banner enable
#
 user-manage web-authentication security port 8887
 undo privacy-statement english
 undo privacy-statement chinese
page-setting
 user-manage security version tlsv1.1 tlsv1.2
password-policy
 level high
user-manage single-sign-on ad
user-manage single-sign-on tsm
user-manage single-sign-on radius
user-manage auto-sync online-user
#
 web-manager security version tlsv1.1 tlsv1.2
 web-manager enable
 web-manager security enable
#
firewall dataplane to manageplane application-apperceive default-action drop
#
 undo ips log merge enable
#
 decoding uri-cache disable
#
 update schedule ips-sdb daily 00:32
 update schedule av-sdb daily 00:32
 update schedule sa-sdb daily 00:32
 update schedule cnc daily 00:32
 update schedule file-reputation daily 00:32
#
ip vpn-instance default
 ipv4-family
#
 time-range worktime
  period-range 08:00:00 to 18:00:00 working-day
#
acl number 3000
 rule 5 permit ip source 192.168.100.0 0.0.0.255 destination 10.40.0.0 0.0.255.255
#
ipsec proposal tran1
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes-256
#
ike proposal default
 encryption-algorithm aes-256 aes-192 aes-128
 dh group14
 authentication-algorithm sha2-512 sha2-384 sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
ike proposal 10
 encryption-algorithm aes-256
 dh group14
 authentication-algorithm sha2-256
 authentication-method pre-share
 integrity-algorithm hmac-sha2-256
 prf hmac-sha2-256
#
ike peer b
 pre-shared-key %^%#$;q6E2@Js63'25HlnJFZGQ/CH+-g:Dy)9gKS{9'F%^%#
 ike-proposal 10
 dpd type on-demand
 remote-address 22.1.1.82
#
ipsec policy map1 10 isakmp
 security acl 3000
 ike-peer b
 proposal tran1
 tunnel local 36.1.1.130
#
aaa
 authentication-scheme default
 authentication-scheme admin_local
 authentication-scheme admin_radius_local
 authentication-scheme admin_hwtacacs_local
 authentication-scheme admin_ad_local
 authentication-scheme admin_ldap_local
 authentication-scheme admin_radius
 authentication-scheme admin_hwtacacs
 authentication-scheme admin_ad
 authorization-scheme default
 accounting-scheme default
 domain default
  service-type internetaccess ssl-vpn l2tp ike
  internet-access mode password
  reference user current-domain
 manager-user audit-admin
  password cipher @%@%t:Sm'klcU~@C>U4X/>fMpY;a85QkS"+qp@69^b/e~m}$Y;dp@%@%
  service-type web terminal
  level 15

 manager-user api-admin
  password cipher @%@%Y43D/.]i2YFtTL*KT=h~kgi=Tx+UB!SA[/n40z)x%n=+gi@k@%@%
  level 15

 manager-user admin
  password cipher @%@%[]_QEr$o*4+\n~6uW:-L~aAt)h(!6|oI)<+b;o<PaV::aAw~@%@%
  service-type web terminal
  level 15

 role system-admin
 role device-admin
 role device-admin(monitor)
 role audit-admin
 bind manager-user audit-admin role audit-admin
 bind manager-user admin role system-admin
#
l2tp-group default-lns
#
interface GigabitEthernet0/0/0
 undo shutdown
 ip binding vpn-instance default
 ip address 192.168.0.1 255.255.255.0
 alias GE0/METH
#
interface GigabitEthernet1/0/0
 undo shutdown
 ip address 192.168.100.254 255.255.255.0
 service-manage ping permit
#
interface GigabitEthernet1/0/1
 undo shutdown
#
interface GigabitEthernet1/0/2
 undo shutdown
#
interface GigabitEthernet1/0/3
 undo shutdown
#
interface GigabitEthernet1/0/4
 undo shutdown
#
interface GigabitEthernet1/0/5
 undo shutdown
#
interface GigabitEthernet1/0/6
 undo shutdown
 ip address 36.1.1.130 255.255.255.252
 service-manage ping permit
 ipsec policy map1
#
interface Virtual-if0
#
interface NULL0
#
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet0/0/0
 add interface GigabitEthernet1/0/0
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet1/0/6
#
firewall zone dmz
 set priority 50
#
ip route-static 0.0.0.0 0.0.0.0 36.1.1.129
ip route-static 10.40.0.0 255.255.0.0 36.1.1.129
#
undo ssh server compatible-ssh1x enable
ssh authentication-type default password
ssh server cipher aes256_ctr aes128_ctr
ssh server hmac sha2_256 sha1
ssh client cipher aes256_ctr aes128_ctr
ssh client hmac sha2_256 sha1
#
firewall detect ftp
#
user-interface con 0
 authentication-mode aaa
user-interface vty 0 4
 authentication-mode aaa
 protocol inbound ssh
user-interface vty 16 20
#
pki realm default
#
sa
#
location
#
multi-linkif
 mode proportion-of-weight
#
right-manager server-group
#
device-classification
 device-group pc
 device-group mobile-terminal
 device-group undefined-group
#
user-manage server-sync tsm
#
security-policy
 rule name Internet
  source-zone trust
  destination-zone untrust
  action permit
 rule name ipsec1
  source-zone local
  source-zone untrust
  destination-zone local
  destination-zone untrust
  action permit
 rule name ipsec2
  source-zone trust
  source-zone untrust
  destination-zone trust
  destination-zone untrust
  source-address 10.40.0.0 mask 255.255.0.0
  source-address 192.168.100.0 mask 255.255.255.0
  destination-address 10.40.0.0 mask 255.255.0.0
  destination-address 192.168.100.0 mask 255.255.255.0
  action permit
#
auth-policy
#
traffic-policy
#
policy-based-route
#
nat-policy
 rule name ipsec
  source-zone trust
  destination-zone untrust
  source-address 192.168.100.0 mask 255.255.255.0
  destination-address 10.40.0.0 mask 255.255.0.0
  action no-nat
 rule name Internet
  source-zone trust
  destination-zone untrust
  action source-nat easy-ip
#
quota-policy
#
pcp-policy
#
dns-transparent-policy
#
rightm-policy
#
return
