H3C基于双机热备主备模式的IPsec

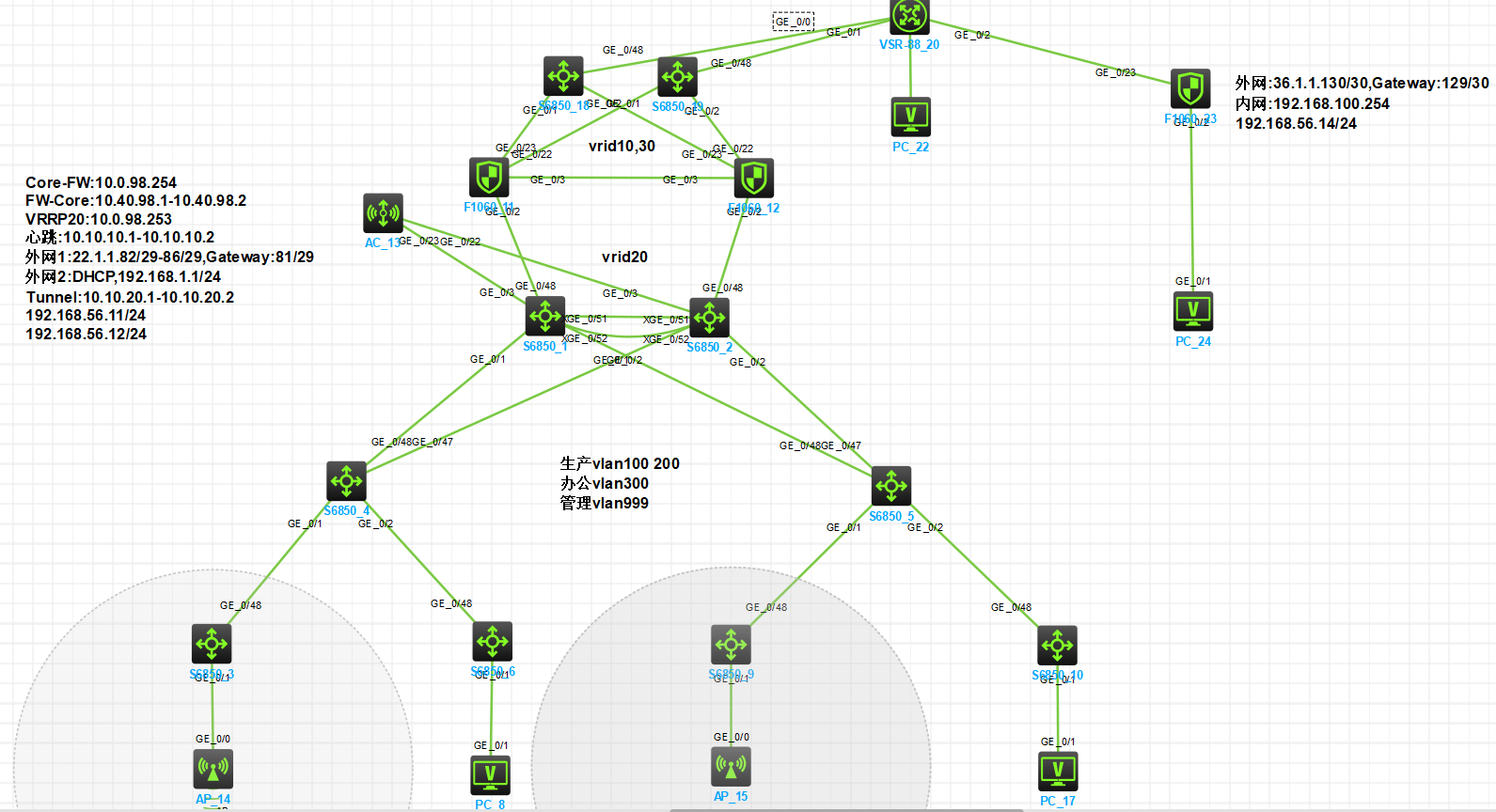

拓扑

规划

总部

Core-FW:10.0.98.254

FW-Core:10.40.98.1-10.40.98.2

VRRP20:10.0.98.253

心跳:10.10.10.1-10.10.10.2

外网1:22.1.1.82/29-86/29,Gateway:81/29

外网2:DHCP,192.168.1.1/24

Tunnel:10.10.20.1-10.10.20.2

192.168.56.11/24

192.168.56.12/24

AC管理vlan999，业务vlan100和300

分支

外网:36.1.1.130/30,Gateway:129/30

内网:192.168.100.254

192.168.56.14/24

核心（堆叠）

#
 version 7.1.070, Alpha 7170
#
 sysname Core
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 10
 irf member 2 priority 1
#
 ip ttl-expires enable
#
 dhcp enable
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 100
#
vlan 200
#
vlan 300
#
vlan 998 to 999
#
irf-port 1/1
 port group interface Ten-GigabitEthernet1/0/51
 port group interface Ten-GigabitEthernet1/0/52
#
irf-port 2/2
 port group interface Ten-GigabitEthernet2/0/51
 port group interface Ten-GigabitEthernet2/0/52
#
 stp global enable
#
dhcp server ip-pool Wireless999
 gateway-list 10.40.99.254
 network 10.40.99.0 mask 255.255.255.0
 address range 10.40.99.100 10.40.99.150
 dns-list 223.5.5.5
#
dhcp server ip-pool vlan100
 gateway-list 10.40.10.254
 network 10.40.10.0 mask 255.255.255.0
 dns-list 223.5.5.5
#
dhcp server ip-pool vlan200
 gateway-list 10.40.20.254
 network 10.40.20.0 mask 255.255.255.0
 address range 10.40.20.1 10.40.20.253
 dns-list 223.5.5.5
#
dhcp server ip-pool vlan300
 gateway-list 10.40.30.254
 network 10.40.30.0 mask 255.255.255.0
 dns-list 223.5.5.5
#
interface Bridge-Aggregation10
 port link-type trunk
 port trunk permit vlan all
#
interface Bridge-Aggregation20
 port link-type trunk
 port trunk permit vlan all
#
interface Bridge-Aggregation30
 port link-type trunk
 port trunk permit vlan all
 port trunk pvid vlan 999
#
interface NULL0
#
interface Vlan-interface100
 ip address 10.40.10.254 255.255.255.0
#
interface Vlan-interface200
 ip address 10.40.20.254 255.255.255.0
#
interface Vlan-interface300
 ip address 10.40.30.254 255.255.255.0
#
interface Vlan-interface998
 ip address 10.0.98.254 255.255.255.0
#
interface Vlan-interface999
 ip address 10.40.99.254 255.255.255.0
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan all
 combo enable fiber
 port link-aggregation group 10
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan all
 combo enable fiber
 port link-aggregation group 20
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan all
 port trunk pvid vlan 999
 combo enable fiber
 port link-aggregation group 30
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 port access vlan 998
 combo enable fiber
#
interface GigabitEthernet2/0/1
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan all
 combo enable fiber
 port link-aggregation group 10
#
interface GigabitEthernet2/0/2
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan all
 combo enable fiber
 port link-aggregation group 20
#
interface GigabitEthernet2/0/3
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan all
 port trunk pvid vlan 999
 combo enable fiber
 port link-aggregation group 30
#
interface GigabitEthernet2/0/48
 port link-mode bridge
 port access vlan 998
 combo enable fiber
#
 ip route-static 0.0.0.0 0 10.0.98.253

接入

交换机和交换机使用trunk口

交换机和PC使用access口

交换机和AP使用trunk+pvid（管理vlan的pvid）

无线

#
 version 7.1.064, Alpha 7165
#
 sysname AC
#
wlan global-configuration
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 56
#
vlan 100
#
vlan 300
#
vlan 999
#
wlan service-template 1
 ssid Wireless_SC
 vlan 100
 client forwarding-location ap vlan 999
 service-template enable
#
wlan service-template 2
 ssid Wireless_BG
 vlan 300
 client forwarding-location ap vlan 999
 service-template enable
#
interface Bridge-Aggregation10
 port link-type trunk
 port trunk permit vlan all
 port trunk pvid vlan 999
#
interface NULL0
#
interface Vlan-interface56
 ip address 192.168.56.13 255.255.255.0
#
interface Vlan-interface999
 ip address 10.40.99.13 255.255.255.0
#
interface GigabitEthernet1/0/0
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 port access vlan 56
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan all
 port trunk pvid vlan 999
 combo enable fiber
 port link-aggregation group 10
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan all
 port trunk pvid vlan 999
 combo enable fiber
 port link-aggregation group 10
#
interface Ten-GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 31
 user-role network-operator
#
 ip route-static 0.0.0.0 0 10.40.99.254
#
domain system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
local-user admin class manage
 password hash $h$6$tOu3SK8IB+qNC5U8$2faiCqpOe+K6AGweUB0JvhV2DvmsD39g0Ffr5P93LGTJ5hrXv0hKquG3NCgTmbNz7J5OFYW9RGwMf7Aaox3ohQ==
 service-type ssh terminal http https
 authorization-attribute user-role network-admin
 authorization-attribute user-role network-operator
#
 ip http enable
 ip https enable
#
 wlan auto-ap enable
 wlan auto-persistent enable
#
wlan ap-group default-group
 vlan 1
#
wlan virtual-ap-group default-virtualapgroup
#
wlan ap 44c8-87c7-0e00 model WA6320-HCL
 serial-id H3C_44-C8-87-C7-0E-00
 vlan 1
 radio 1
  radio enable
  service-template 1
 radio 2
  radio disable
  service-template 1
 gigabitethernet 1
#
wlan ap 44c8-8ef0-0f00 model WA6320-HCL
 serial-id H3C_44-C8-8E-F0-0F-00
 vlan 1
 radio 1
  radio enable
  service-template 2
 radio 2
  radio enable
  service-template 2
 gigabitethernet 1
#
return

AP

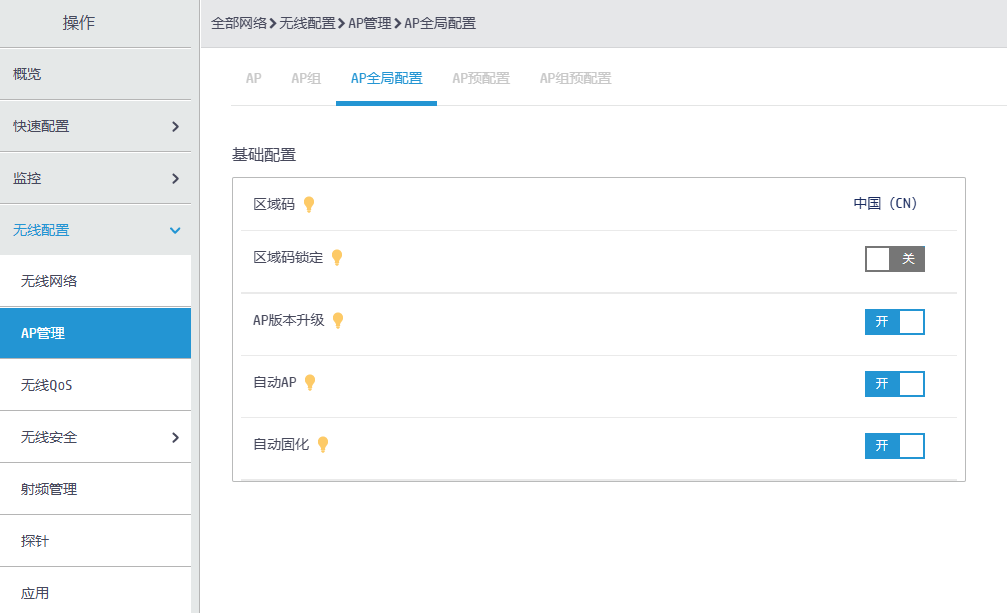

想快速上线，开启自动AP，自动固化，让AC自己扫描

实际项目中安装前统计好点位，AP的MAC地址，规划好IP，做好点位和AP的对应表，方便以后排故

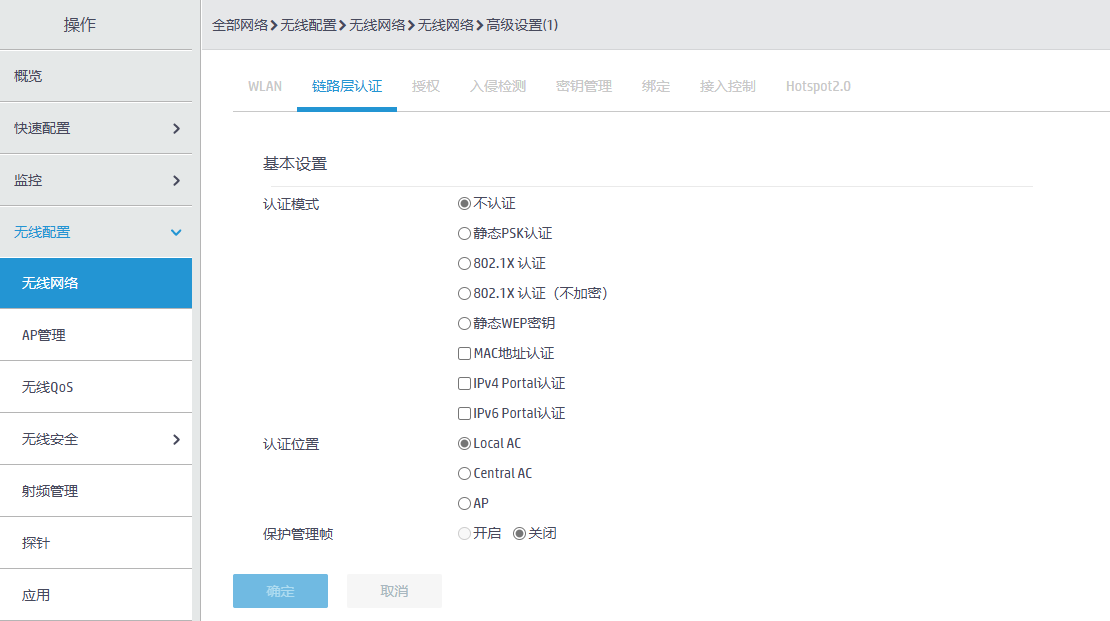

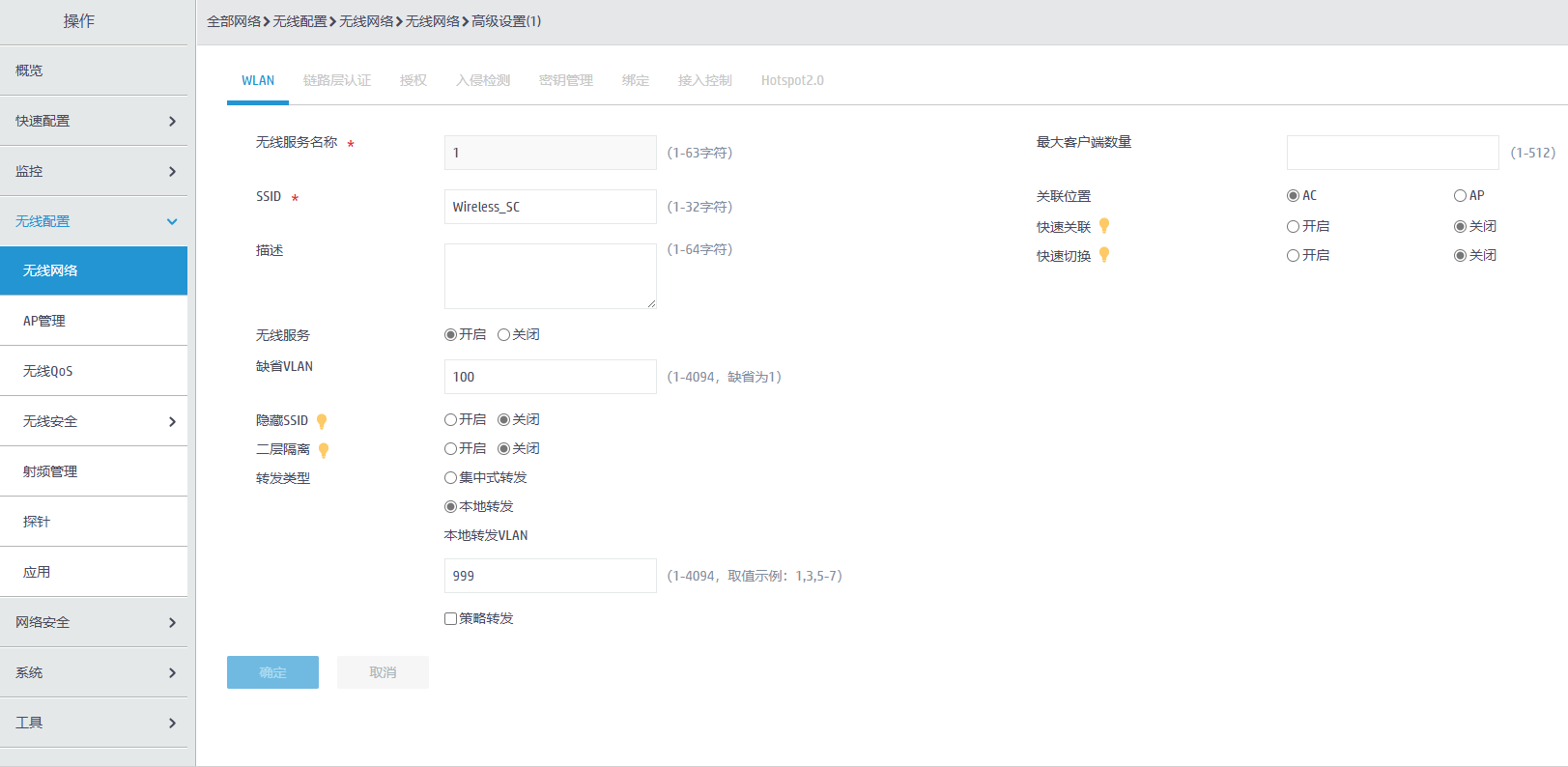

AC

我一般做本地转发，这儿的缺省vlan就是业务vlan，本地转发vlan就是管理vlan

集中式转发也就是隧道转发，业务和管理都走隧道；本地转发只有管理走隧道

按需选择

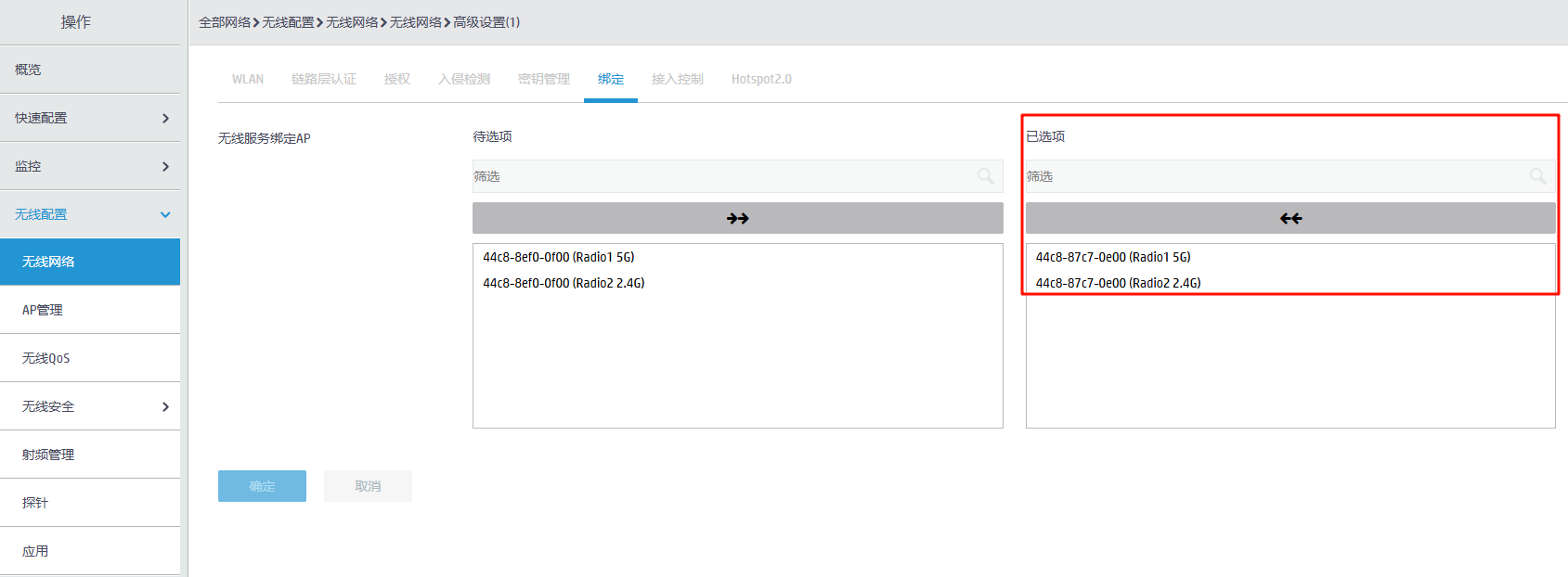

SSID绑定AP

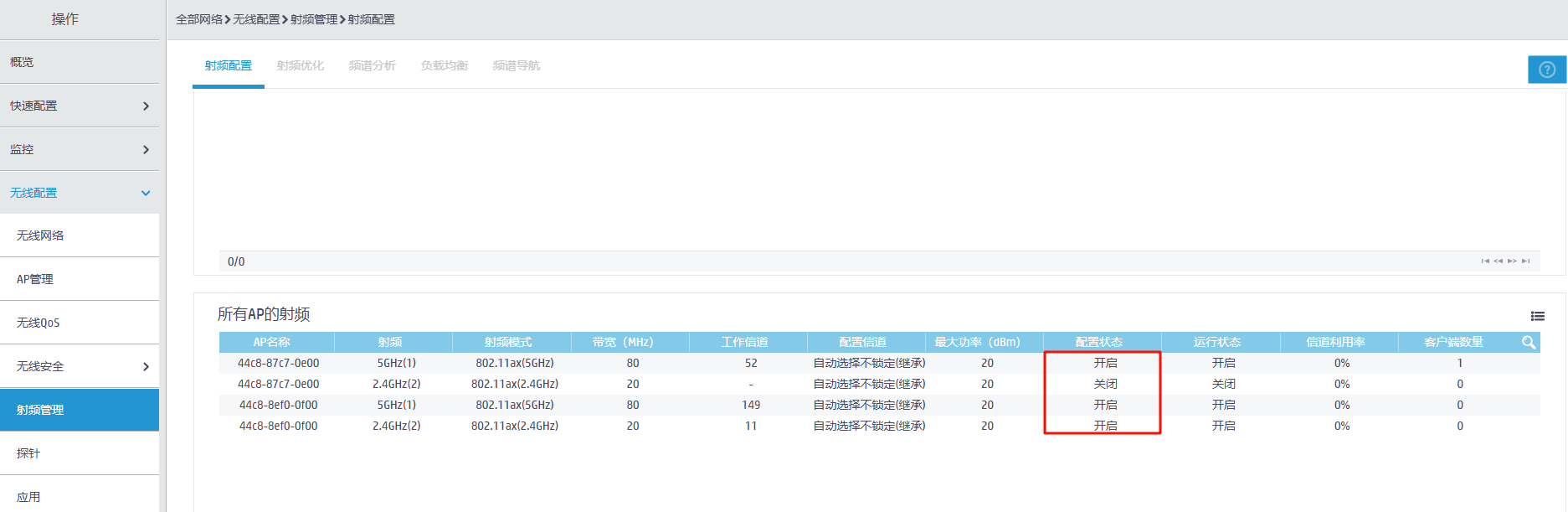

射频开启可以选择5G和204G射频的开启和关闭

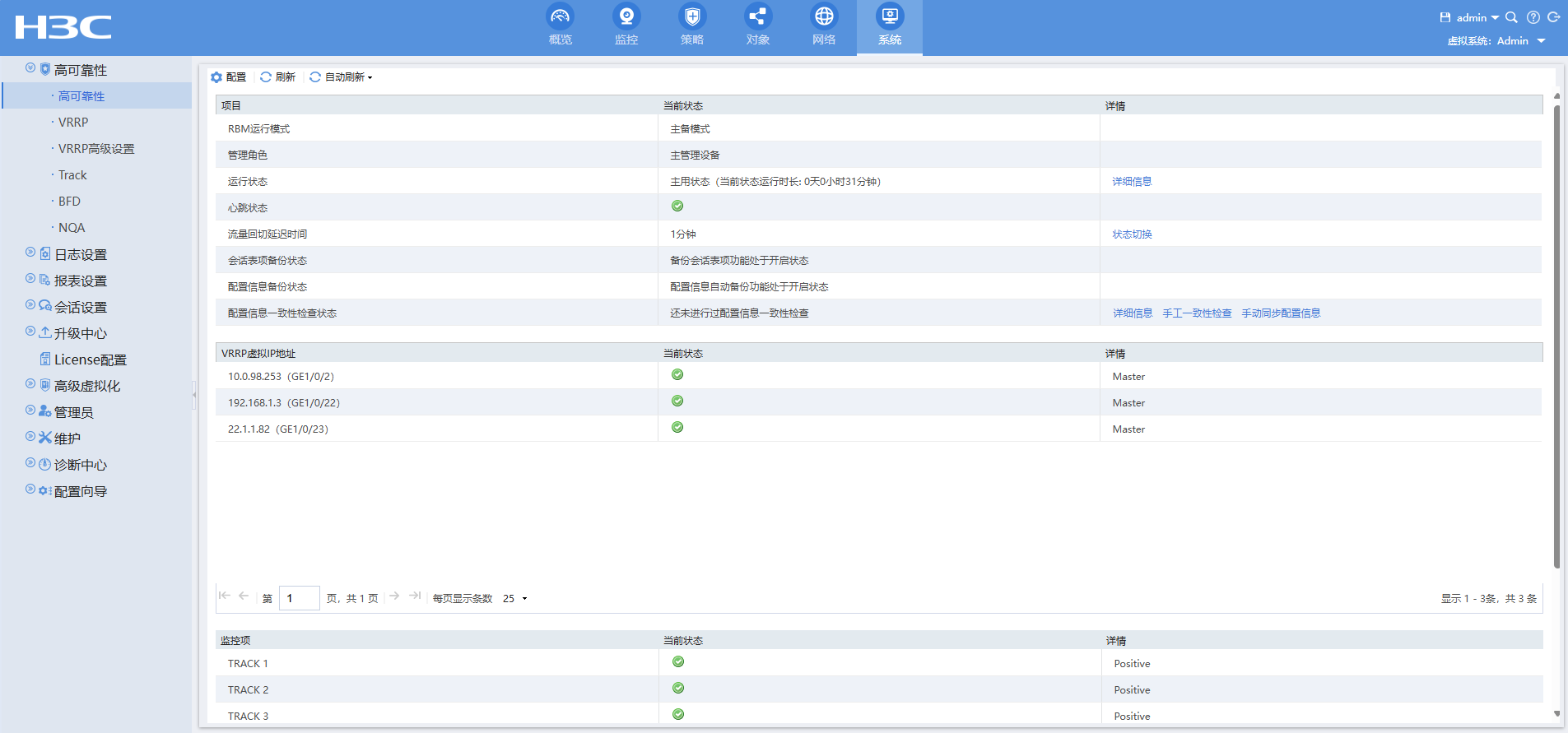

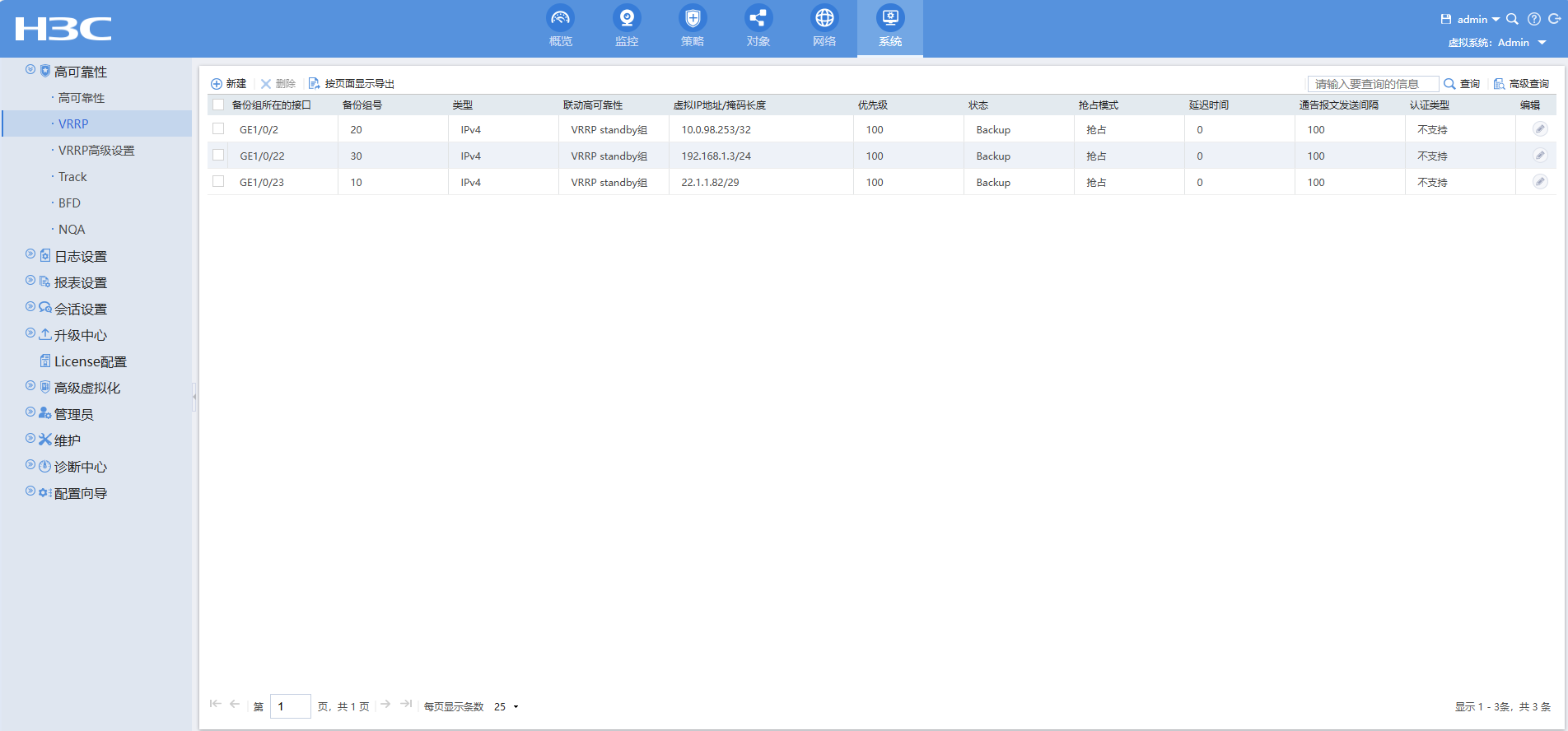

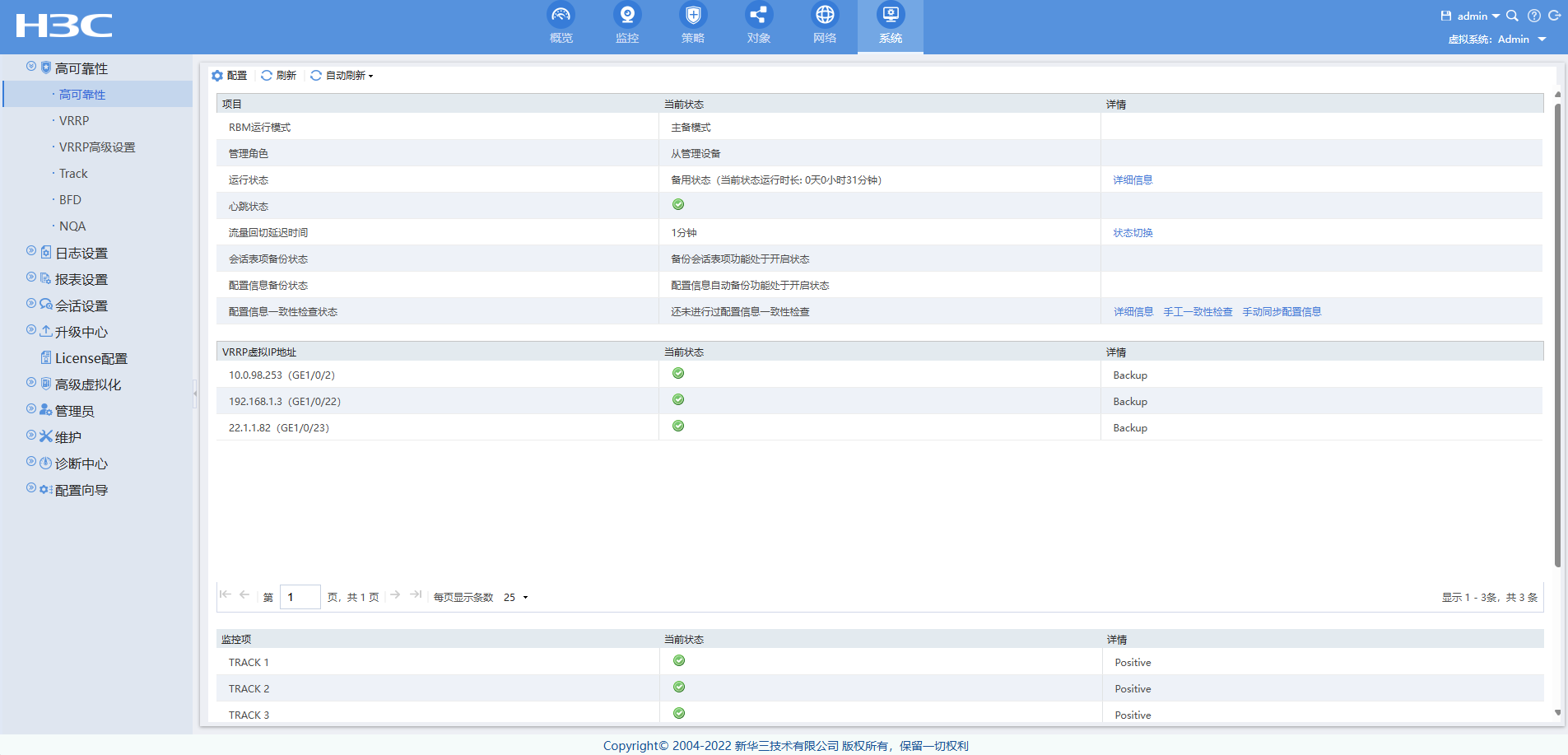

双机热备

FW1

#
 version 7.1.064, Alpha 7164
#
 sysname FW1
#
context Admin id 1
#
 telnet server enable
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#

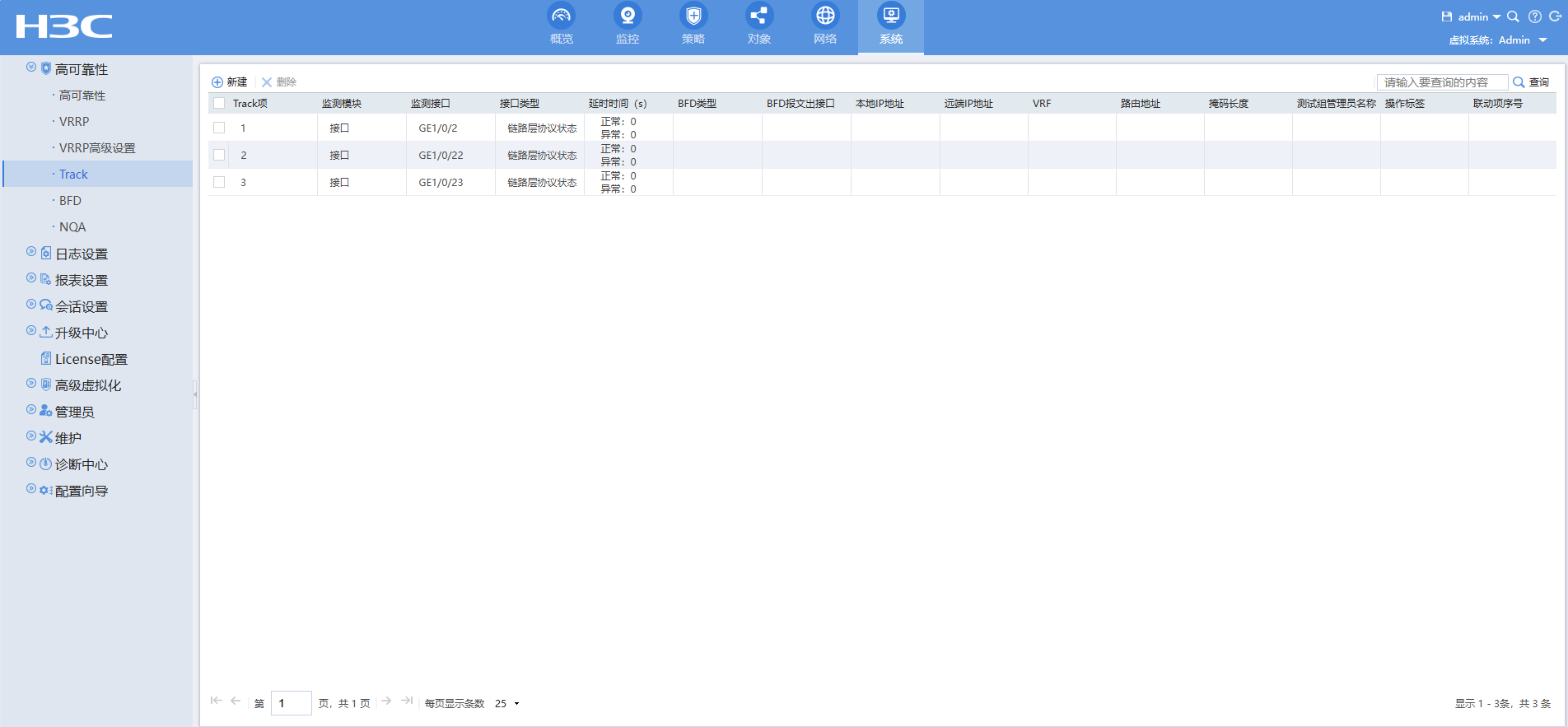

track 1 interface GigabitEthernet1/0/2
#
track 2 interface GigabitEthernet1/0/22
#
track 3 interface GigabitEthernet1/0/23
#
 ip ttl-expires enable
#
nat address-group 1 name ww1
 address 22.1.1.82 22.1.1.86
#
nat address-group 2 name ww2
 address 192.168.1.3 192.168.1.3
 probe ww2
#
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
object-group ip address 10.40.0.0
 security-zone Trust
 0 network subnet 10.40.0.0 255.255.0.0
#
object-group ip address 10.40.10.0
 security-zone Trust
 0 network subnet 10.40.10.0 255.255.255.0
#
object-group ip address 10.40.20.0
 security-zone Trust
 0 network subnet 10.40.20.0 255.255.255.0
#
object-group ip address 10.40.30.0
 security-zone Trust
 0 network subnet 10.40.30.0 255.255.255.0
#
object-group ip address 192.168.100.0
 security-zone Untrust
 0 network subnet 192.168.100.0 255.255.255.0
#
interface NULL0
#
interface LoopBack0
 ip address 10.0.0.2 255.255.255.0
#
interface GigabitEthernet1/0/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/2
 port link-mode route
 combo enable copper
 ip address 10.0.98.1 255.255.255.0
 vrrp vrid 20 virtual-ip 10.0.98.253 active
 manage ping inbound
 manage ping outbound
#
interface GigabitEthernet1/0/3
 port link-mode route
 combo enable copper
 ip address 10.10.10.1 255.255.255.0
#
interface GigabitEthernet1/0/4
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/5
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/6
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/7
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/8
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/9
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/10
 port link-mode route
 combo enable copper
 ip address 192.168.56.11 255.255.255.0
#
interface GigabitEthernet1/0/11
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/12
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/13
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/14
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/15
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/16
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/17
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/18
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/19
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/20
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/21
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/22
 port link-mode route
 combo enable copper
 ip address 192.168.1.4 255.255.255.0
 vrrp vrid 30 virtual-ip 192.168.1.3 255.255.255.0 active
#
interface GigabitEthernet1/0/23
 port link-mode route
 combo enable copper
 ip address 10.40.101.1 255.255.255.0
 vrrp vrid 10 virtual-ip 22.1.1.82 255.255.255.248 active
 ipsec apply policy ipsec
 ipsec no-nat-process enable
#

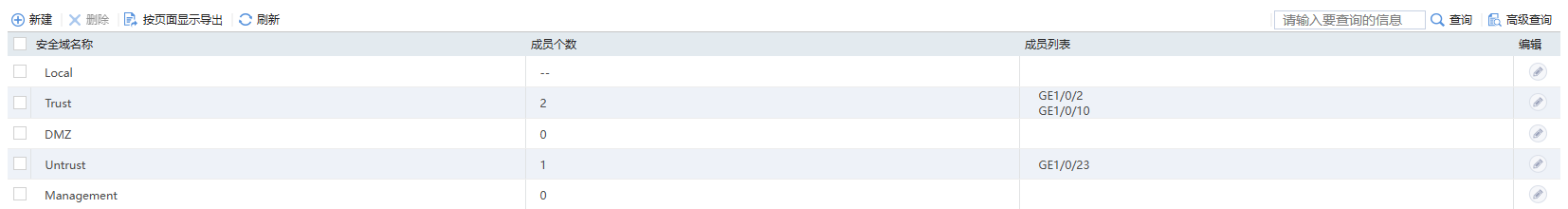

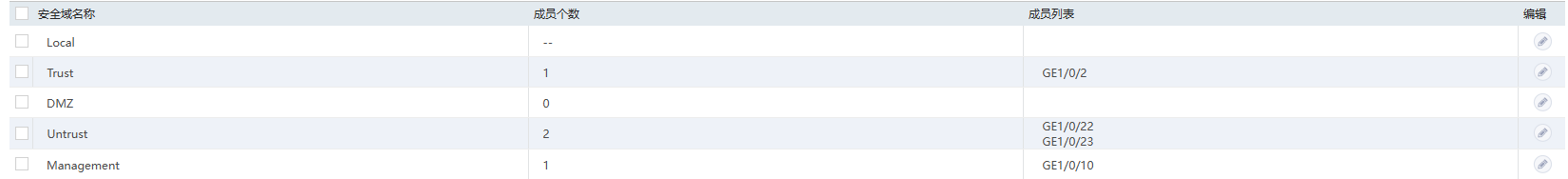

security-zone name Local
#
security-zone name Trust
 import interface GigabitEthernet1/0/2
#
security-zone name DMZ
#
security-zone name Untrust
 import interface GigabitEthernet1/0/22
 import interface GigabitEthernet1/0/23
#
security-zone name Management
 import interface GigabitEthernet1/0/10
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-admin
#
line con 0
 authentication-mode scheme
 user-role network-admin
#
line vty 0 4
 authentication-mode scheme
 user-role network-admin
#
line vty 5 63
 user-role network-operator
#

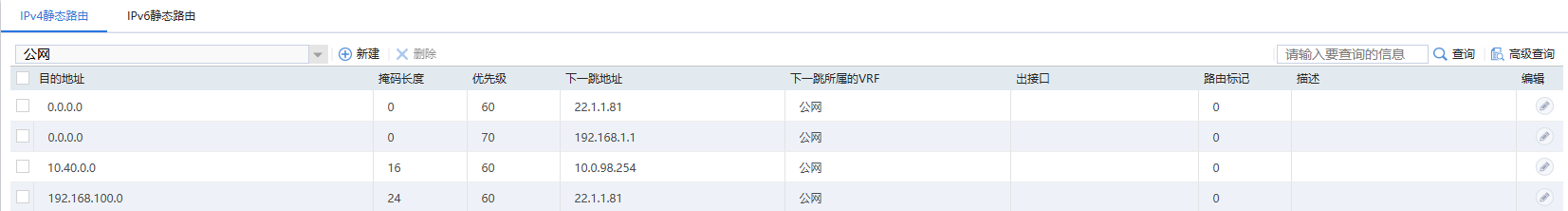

 ip route-static 0.0.0.0 0 22.1.1.81
 ip route-static 0.0.0.0 0 192.168.1.1 preference 70
 ip route-static 10.40.0.0 16 10.0.98.254
 ip route-static 192.168.100.0 24 22.1.1.81
#
 info-center loghost 127.0.0.1 port 3301 format default
 info-center source CFGLOG loghost level informational
#
acl basic 2000
 rule 0 permit source 10.40.20.0 0.0.0.255
#
acl advanced name IPsec_ipsec_IPv4_1
 rule 0 permit ip source 10.40.0.0 0.0.255.255 destination 192.168.100.0 0.0.0.255
#
domain system
#
 aaa session-limit ftp 16
 aaa session-limit telnet 16
 aaa session-limit ssh 16
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
local-user admin class manage
 password hash $h$6$l0JyVC9LNw2lloNF$xZ6ml7B0e/C6vZ1ex9vFYwOznREMGicJ3A4rLHV8LoqN7uAAK3H3cNN7rjpL3vhFnsntzJb+yv202QjXuwLrsA==
 service-type telnet terminal http https
 authorization-attribute user-role level-3
 authorization-attribute user-role network-admin
 authorization-attribute user-role network-operator
#

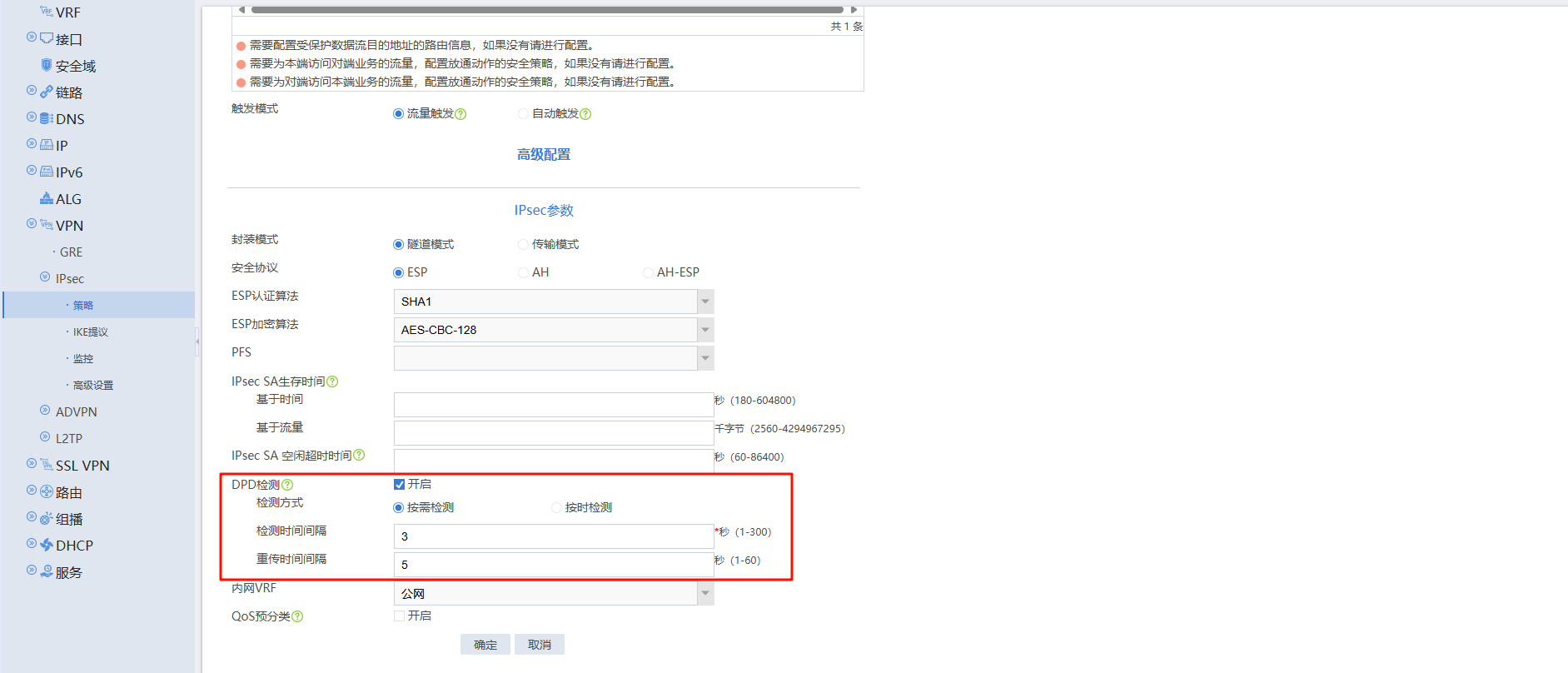

ipsec transform-set ipsec_IPv4_1
 esp encryption-algorithm aes-cbc-128
 esp authentication-algorithm sha1
#
ipsec policy ipsec 1 isakmp
 transform-set ipsec_IPv4_1
 security acl name IPsec_ipsec_IPv4_1
 local-address 22.1.1.82
 remote-address 36.1.1.130
 ike-profile ipsec_IPv4_1
#

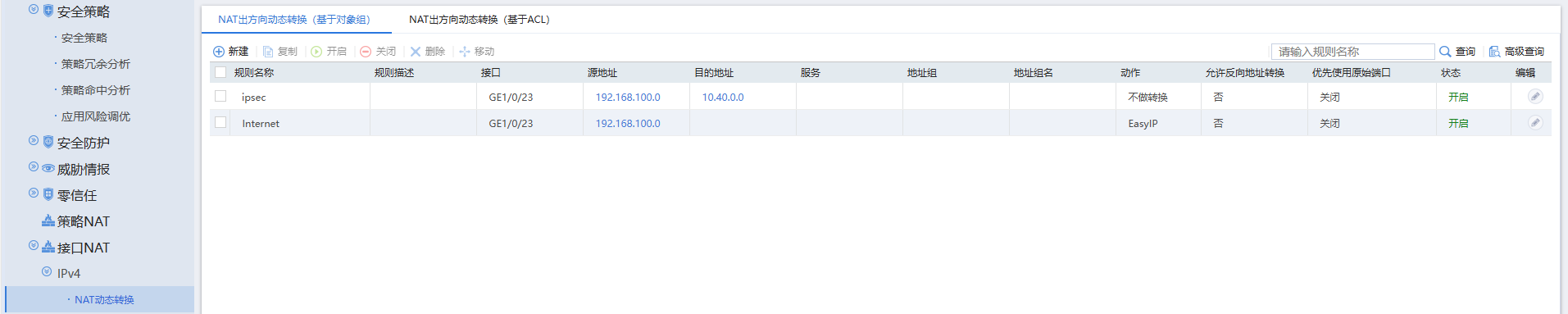

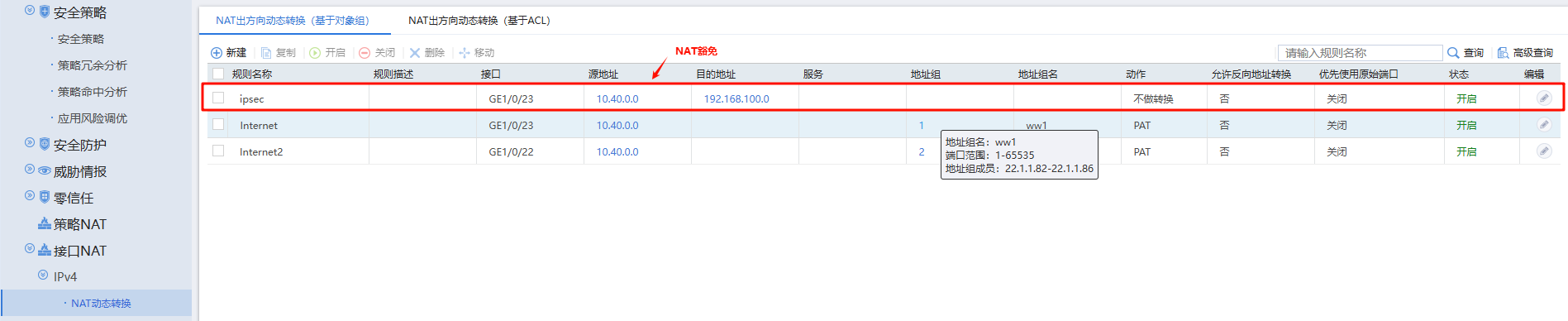

nat policy
 rule name ipsec
  source-ip 10.40.0.0
  destination-ip 192.168.100.0
  outbound-interface GigabitEthernet1/0/23
  action no-nat
 rule name Internet
  source-ip 10.40.0.0
  outbound-interface GigabitEthernet1/0/23
  action address-group 1
 rule name Internet2
  source-ip 10.40.0.0
  outbound-interface GigabitEthernet1/0/22
  action address-group 2
#
ike profile ipsec_IPv4_1
 keychain ipsec_IPv4_1

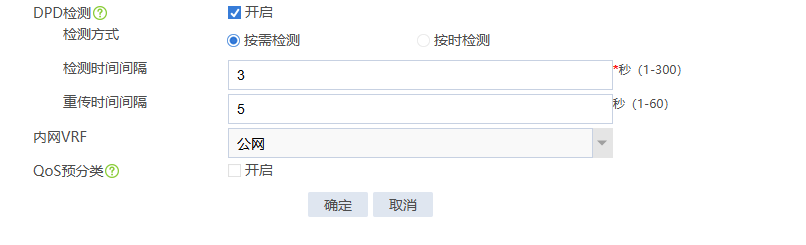

 dpd interval 3 on-demand
 match remote identity address 36.1.1.130 255.255.255.255
 match local address GigabitEthernet1/0/23
#
ike keychain ipsec_IPv4_1
 match local address GigabitEthernet1/0/23
 pre-shared-key address 36.1.1.130 255.255.255.255 key cipher $c$3$09Y1afqLIXAibB6joHfvpv0CvvGbqAKJEg==
#
 ip http enable
 ip https enable
#

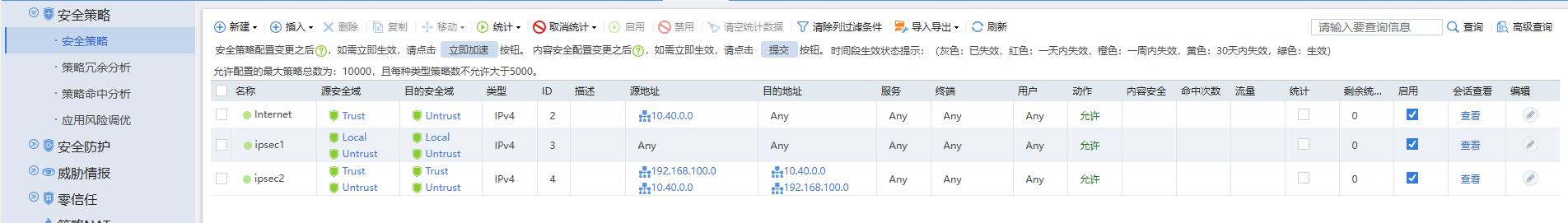

security-policy ip
 rule 2 name Internet
  action pass
  source-zone Trust
  destination-zone Untrust
  source-ip 10.40.0.0
 rule 3 name ipsec1
  action pass
  source-zone Local
  source-zone Untrust
  destination-zone Local
  destination-zone Untrust
 rule 4 name ipsec2
  action pass
  source-zone Trust
  source-zone Untrust
  destination-zone Trust
  destination-zone Untrust
  source-ip 192.168.100.0
  source-ip 10.40.0.0
  destination-ip 10.40.0.0
  destination-ip 192.168.100.0
#
remote-backup group
 data-channel interface GigabitEthernet1/0/3
 delay-time 1
 track 1
 track 2
 track 3
 local-ip 10.10.10.1
 remote-ip 10.10.10.2
 device-role primary
#
return

FW2

#
 version 7.1.064, Alpha 7164
#
 sysname FW2
#
context Admin id 1
#
 telnet server enable
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
track 1 interface GigabitEthernet1/0/2
#
track 2 interface GigabitEthernet1/0/22
#
track 3 interface GigabitEthernet1/0/23
#
 ip ttl-expires enable
#
nat address-group 1 name ww1
 address 22.1.1.82 22.1.1.86
#
nat address-group 2 name ww2
 address 192.168.1.3 192.168.1.3
 probe ww2
#
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
object-group ip address 10.40.0.0
 security-zone Trust
 0 network subnet 10.40.0.0 255.255.0.0
#
object-group ip address 10.40.10.0
 security-zone Trust
 0 network subnet 10.40.10.0 255.255.255.0
#
object-group ip address 10.40.20.0
 security-zone Trust
 0 network subnet 10.40.20.0 255.255.255.0
#
object-group ip address 10.40.30.0
 security-zone Trust
 0 network subnet 10.40.30.0 255.255.255.0
#
object-group ip address 192.168.100.0
 security-zone Untrust
 0 network subnet 192.168.100.0 255.255.255.0
#
nqa template icmp ww2
 destination ip 192.168.1.1
 next-hop ip 192.168.1.1
 out interface GigabitEthernet1/0/22
#
interface NULL0
#
interface LoopBack0
 ip address 10.0.0.3 255.255.255.0
#
interface GigabitEthernet1/0/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/2
 port link-mode route
 combo enable copper
 ip address 10.0.98.2 255.255.255.0
 vrrp vrid 20 virtual-ip 10.0.98.253 standby
 manage ping inbound
 manage ping outbound
#
interface GigabitEthernet1/0/3
 port link-mode route
 combo enable copper
 ip address 10.10.10.2 255.255.255.0
#
interface GigabitEthernet1/0/4
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/5
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/6
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/7
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/8
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/9
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/10
 port link-mode route
 combo enable copper
 ip address 192.168.56.12 255.255.255.0
#
interface GigabitEthernet1/0/11
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/12
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/13
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/14
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/15
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/16
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/17
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/18
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/19
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/20
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/21
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/22
 port link-mode route
 combo enable copper
 ip address 192.168.1.5 255.255.255.0
 vrrp vrid 30 virtual-ip 192.168.1.3 255.255.255.0 standby
#
interface GigabitEthernet1/0/23
 port link-mode route
 combo enable copper
 ip address 10.40.101.2 255.255.255.0
 vrrp vrid 10 virtual-ip 22.1.1.82 255.255.255.248 standby
 ipsec apply policy ipsec
 ipsec no-nat-process enable
#
security-zone name Local
#
security-zone name Trust
 import interface GigabitEthernet1/0/2
#
security-zone name DMZ
#
security-zone name Untrust
 import interface GigabitEthernet1/0/22
 import interface GigabitEthernet1/0/23
#
security-zone name Management
 import interface GigabitEthernet1/0/10
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-admin
#
line con 0
 authentication-mode scheme
 user-role network-admin
#
line vty 0 4
 authentication-mode scheme
 user-role network-admin
#
line vty 5 63
 user-role network-operator
#
 ip route-static 0.0.0.0 0 22.1.1.81
 ip route-static 0.0.0.0 0 192.168.1.1 preference 70
 ip route-static 10.40.0.0 16 10.0.98.254
 ip route-static 192.168.100.0 24 22.1.1.81
#
 info-center loghost 127.0.0.1 port 3301 format default
 info-center source CFGLOG loghost level informational
#
acl basic 2000
 rule 0 permit source 10.40.20.0 0.0.0.255
#
acl advanced name IPsec_ipsec_IPv4_1
 rule 0 permit ip source 10.40.0.0 0.0.255.255 destination 192.168.100.0 0.0.0.255
#
domain system
#
 aaa session-limit ftp 16
 aaa session-limit telnet 16
 aaa session-limit ssh 16
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
local-user admin class manage
 password hash $h$6$82DgUmGA+z2tOyfc$GeDw9Zx4HM/AbN2RrYYDP/SB8dgP3dDAcXL9yIx4C7o6jAqC370JNnd25nEIqVBQQ4UE+o0jHLD4eO6bY3j7LQ==
 service-type telnet terminal http
 authorization-attribute user-role level-3
 authorization-attribute user-role network-admin
 authorization-attribute user-role network-operator
#
ipsec transform-set ipsec_IPv4_1
 esp encryption-algorithm aes-cbc-128
 esp authentication-algorithm sha1
#
ipsec policy ipsec 1 isakmp
 transform-set ipsec_IPv4_1
 security acl name IPsec_ipsec_IPv4_1
 local-address 22.1.1.82
 remote-address 36.1.1.130
 ike-profile ipsec_IPv4_1
#
nat policy
 rule name ipsec
  source-ip 10.40.0.0
  destination-ip 192.168.100.0
  outbound-interface GigabitEthernet1/0/23
  action no-nat
 rule name Internet
  source-ip 10.40.0.0
  outbound-interface GigabitEthernet1/0/23
  action address-group 1
 rule name Internet2
  source-ip 10.40.0.0
  outbound-interface GigabitEthernet1/0/22
  action address-group 2
#
ike profile ipsec_IPv4_1
 keychain ipsec_IPv4_1
 match remote identity address 36.1.1.130 255.255.255.255
 match local address GigabitEthernet1/0/23
#
ike keychain ipsec_IPv4_1
 match local address GigabitEthernet1/0/23
 pre-shared-key address 36.1.1.130 255.255.255.255 key cipher $c$3$PMGaKGTtmbNFoxyDJ6l31tDyqbceKLKtIA==
#
 ip http enable
 ip https enable
#
security-policy ip
 rule 2 name Internet
  action pass
  source-zone Trust
  destination-zone Untrust
  source-ip 10.40.0.0
 rule 3 name ipsec1
  action pass
  source-zone Local
  source-zone Untrust
  destination-zone Local
  destination-zone Untrust
 rule 4 name ipsec2
  action pass
  source-zone Trust
  source-zone Untrust
  destination-zone Trust
  destination-zone Untrust
  source-ip 192.168.100.0
  source-ip 10.40.0.0
  destination-ip 10.40.0.0
  destination-ip 192.168.100.0
#
remote-backup group
 data-channel interface GigabitEthernet1/0/3
 delay-time 1
 track 1
 track 2
 track 3
 local-ip 10.10.10.2
 remote-ip 10.10.10.1
 device-role secondary
#
return

FW3

#
 version 7.1.064, Alpha 7164
#
 sysname FW-cz
#
context Admin id 1
#
 telnet server enable
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 ip ttl-expires enable
#
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
object-group ip address 10.40.0.0
 security-zone Untrust
 0 network subnet 10.40.0.0 255.255.0.0
#
object-group ip address 192.168.100.0
 security-zone Trust
 0 network subnet 192.168.100.0 255.255.255.0
#
interface NULL0
#
interface GigabitEthernet1/0/0
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable copper
 ip address 192.168.0.1 255.255.255.0
#
interface GigabitEthernet1/0/2
 port link-mode route
 combo enable copper
 ip address 192.168.100.254 255.255.255.0
 manage ping inbound
 manage ping outbound
#
interface GigabitEthernet1/0/3
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/4
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/5
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/6
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/7
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/8
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/9
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/10
 port link-mode route
 combo enable copper
 ip address 192.168.56.14 255.255.255.0
 manage http inbound
 manage http outbound
 manage https inbound
 manage https outbound
#
interface GigabitEthernet1/0/11
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/12
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/13
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/14
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/15
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/16
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/17
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/18
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/19
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/20
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/21
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/22
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/23
 port link-mode route
 combo enable copper
 ip address 36.1.1.130 255.255.255.252
 manage ping inbound
 manage ping outbound
 ipsec apply policy ipsec
 ipsec no-nat-process enable
#
security-zone name Local
#
security-zone name Trust
 import interface GigabitEthernet1/0/2
 import interface GigabitEthernet1/0/10
#
security-zone name DMZ
#
security-zone name Untrust
 import interface GigabitEthernet1/0/23
#
security-zone name Management
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-admin
#
line con 0
 authentication-mode scheme
 user-role network-admin
#
line vty 0 4
 authentication-mode scheme
 user-role network-admin
#
line vty 5 63
 user-role network-operator
#
 ip route-static 0.0.0.0 0 36.1.1.129
 ip route-static 10.40.0.0 16 36.1.1.129
#
 info-center loghost 127.0.0.1 port 3301 format default
 info-center source CFGLOG loghost level informational
#
acl advanced name IPsec_ipsec_IPv4_1
 rule 0 permit ip source 192.168.100.0 0.0.0.255 destination 10.40.0.0 0.0.255.255
#
domain system
#
 aaa session-limit ftp 16
 aaa session-limit telnet 16
 aaa session-limit ssh 16
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
local-user admin class manage
 password hash $h$6$6YFXrlxMBTxs/+17$FnGCMqPR7yNTNGnTwZs3zLCpOOeuwhbp5EYitqbxy1TsaWAS6R/0OYO7cnY59OTnWxcxHGWJUMJQOHem17Mpvg==
 service-type telnet terminal http https
 authorization-attribute user-role level-3
 authorization-attribute user-role network-admin
 authorization-attribute user-role network-operator
#
ipsec transform-set ipsec_IPv4_1
 esp encryption-algorithm aes-cbc-128
 esp authentication-algorithm sha1
#
ipsec policy ipsec 1 isakmp
 transform-set ipsec_IPv4_1
 security acl name IPsec_ipsec_IPv4_1
 local-address 36.1.1.130
 remote-address 22.1.1.82
 ike-profile ipsec_IPv4_1
#
nat policy
 rule name ipsec
  source-ip 192.168.100.0
  destination-ip 10.40.0.0
  outbound-interface GigabitEthernet1/0/23
  action no-nat
 rule name Internet
  source-ip 192.168.100.0
  outbound-interface GigabitEthernet1/0/23
  action easy-ip
#
ike profile ipsec_IPv4_1
 keychain ipsec_IPv4_1
 dpd interval 3 on-demand
 match remote identity address 22.1.1.82 255.255.255.255
 match local address GigabitEthernet1/0/23
#
ike keychain ipsec_IPv4_1
 match local address GigabitEthernet1/0/23
 pre-shared-key address 22.1.1.82 255.255.255.255 key cipher $c$3$DTIjReK3hvUMqKwSqodxDgxIC43PiV0hMg==
#
 ip http enable
 ip https enable
#
security-policy ip
 rule 0 name Internet
  action pass
  source-zone Trust
  destination-zone Untrust
  source-ip 192.168.100.0
 rule 1 name ipsec1
  action pass
  source-zone Local
  source-zone Untrust
  destination-zone Local
  destination-zone Untrust
 rule 2 name ipsec2
  action pass
  source-zone Trust
  source-zone Untrust
  destination-zone Trust
  destination-zone Untrust
  source-ip 10.40.0.0
  source-ip 192.168.100.0
  destination-ip 10.40.0.0
  destination-ip 192.168.100.0
#
return

接口

总部

分部

区域

总部

分部

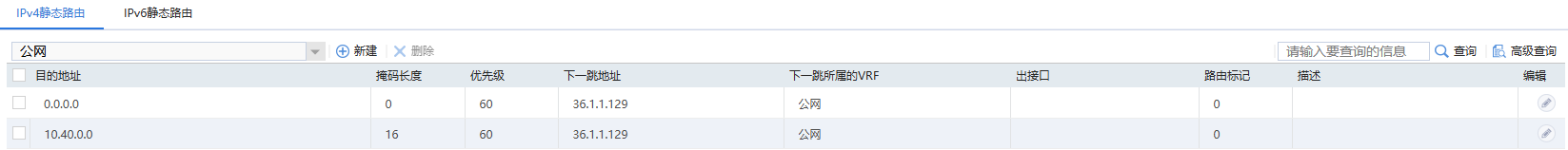

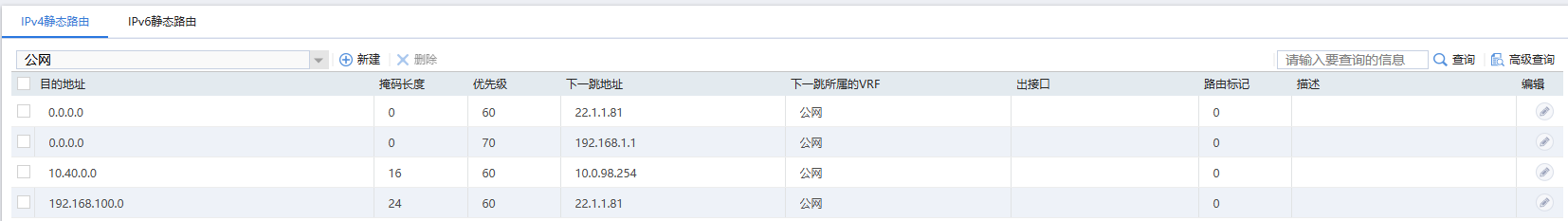

路由

总部

分部

高可靠性

VRRP

Track

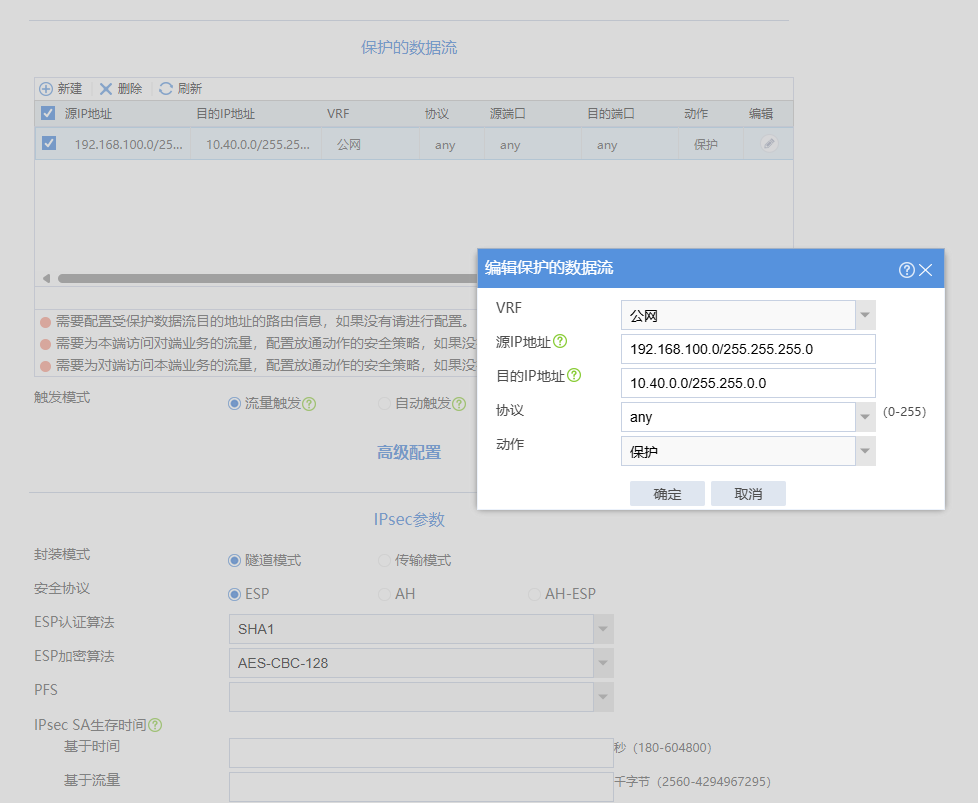

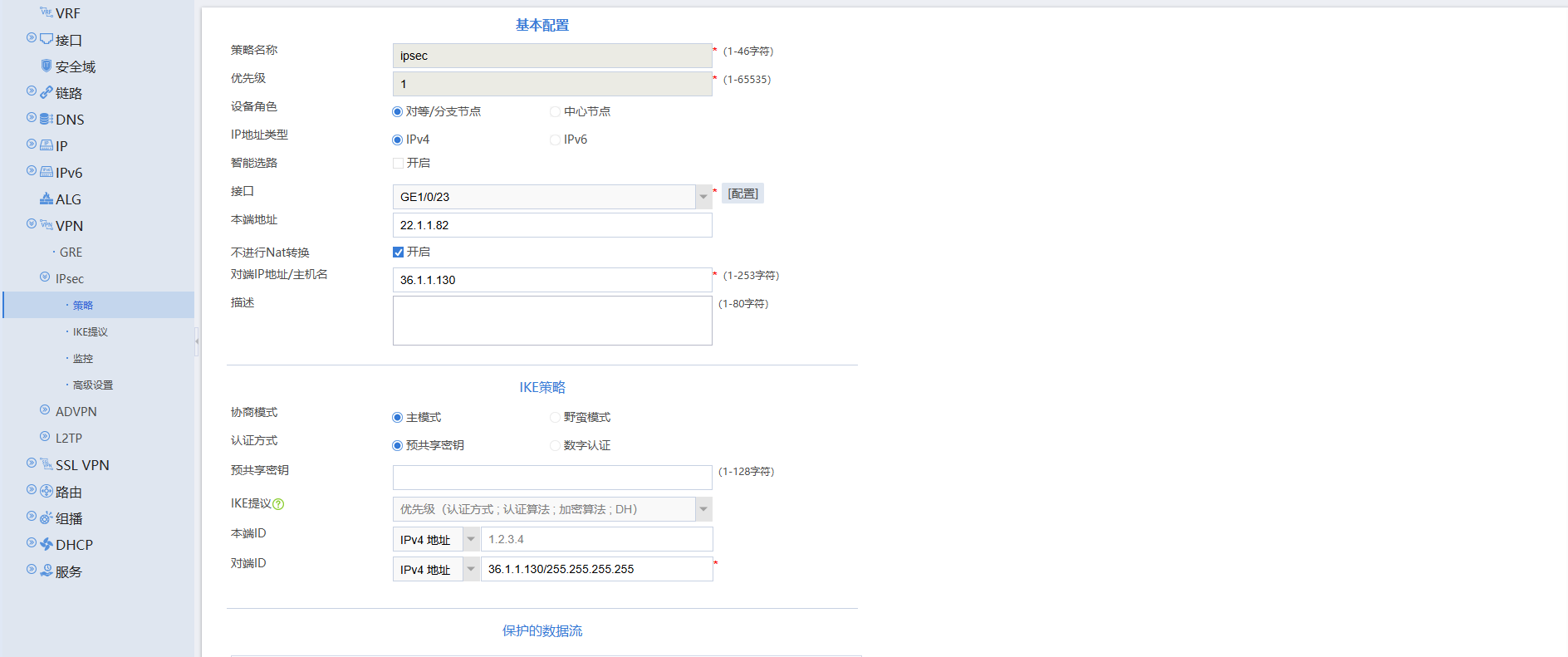

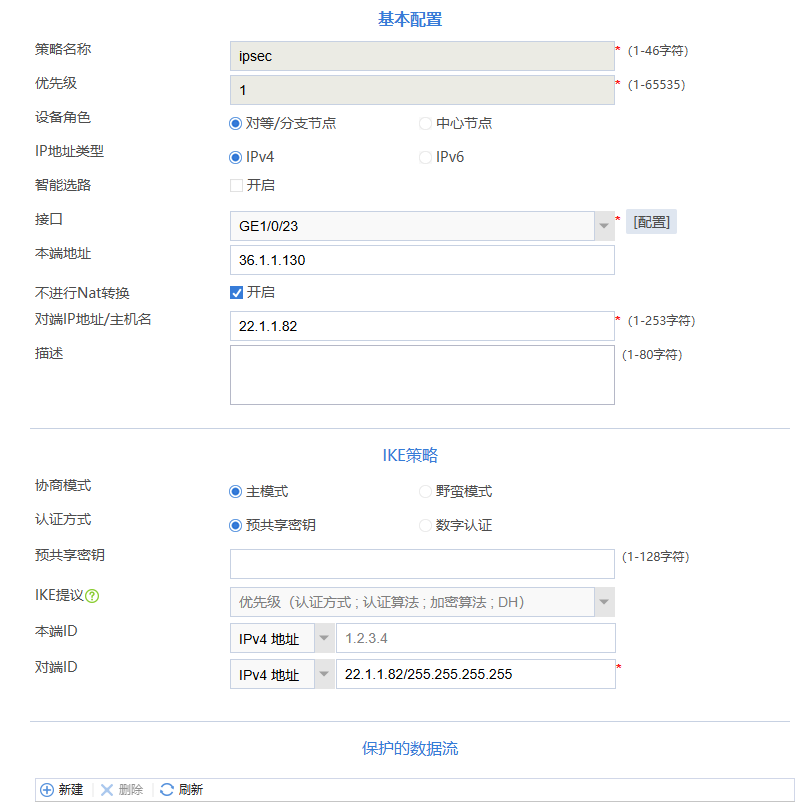

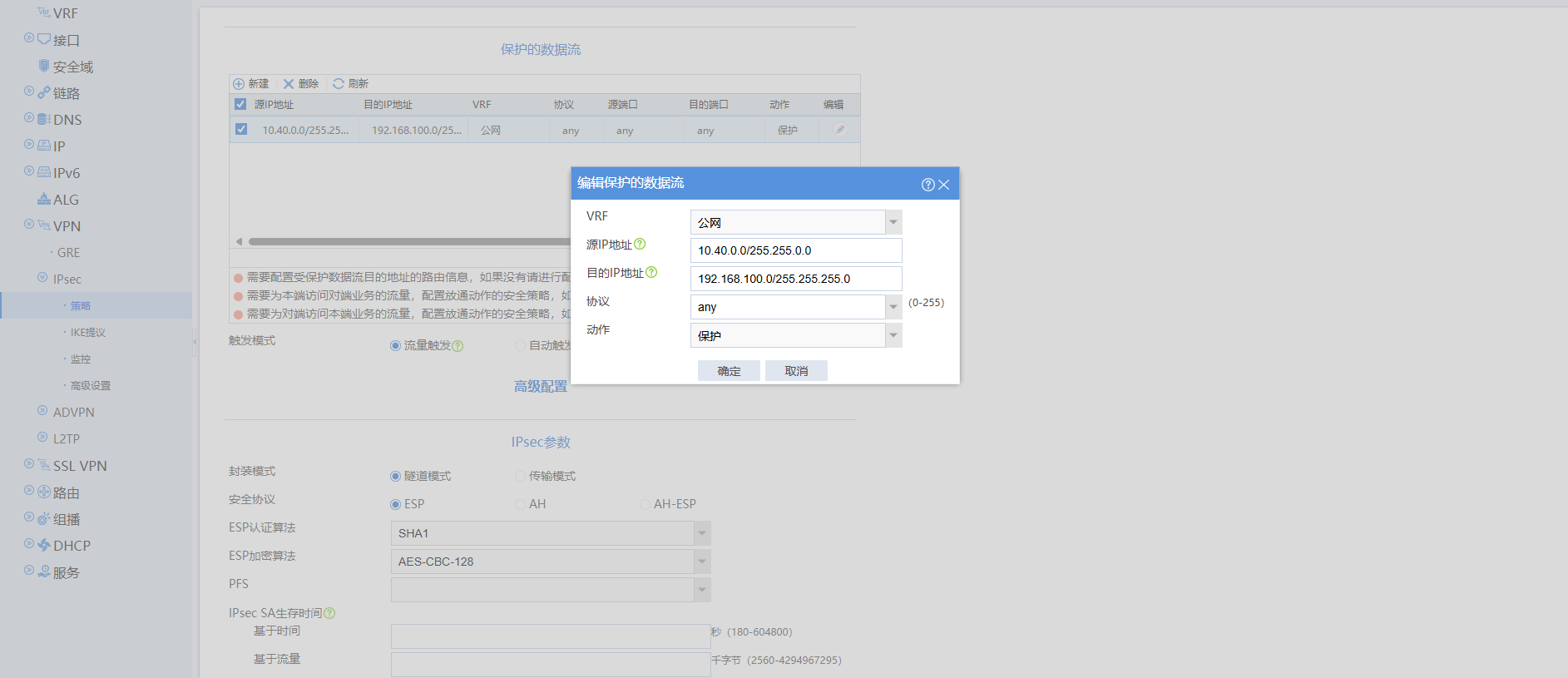

ipsec

总部

分部

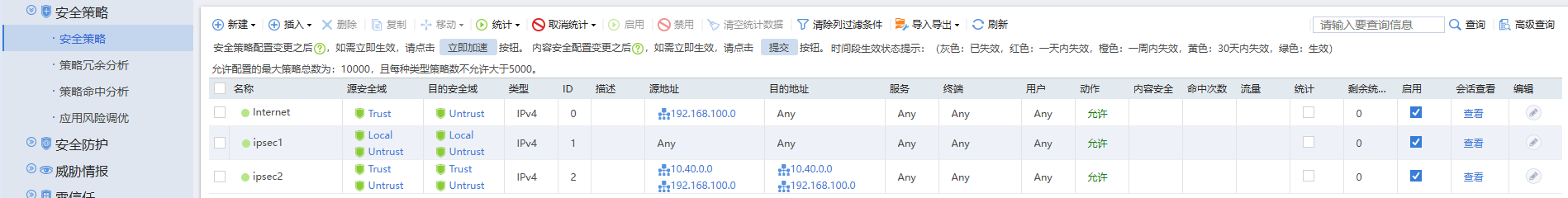

安全策略

总部

分部

NAT策略

总部

分部

切换测试

双机热备的接口故障切换以及接口状态恢复后1分钟倒计时抢占，经测试没问题。

分部作为发起方，ipsec切换测试在开启DPD后会在收不到报文后重建隧道，丢几个包后显示ping通。
